Description
Key Features & Highlights
-
4-section bed platform with auto-regression backrest (slides 80 mm before tilting) to reduce pressure on the back and thighs.
-
Four IPX6 electric actuators for precise movement:
-
Two at the base for height adjustment (synchronous/asynchronous) and Trendelenburg/Reverse Trendelenburg.
-
Two under the mattress surface for backrest and thigh section adjustments.
-
-
“Chair position” function improves comfort, prevents chest/pelvic compression, and reduces risk of pressure ulcers.
-
Split polyethylene side rails – foldable, independent sections with integrated tilt indicators for added safety.
-
Manual leg section adjustment with 6-position dual rack.
-
Emergency safety: Dual-side quick-release lever on backrest for CPR.
-
Control systems:
-
Backlit handset with spiral cable.
-
Central control box with battery backup.
-
Nurse control panel with key for lock/unlock functions.
-
-
Safety & Mobility: Brake release alarm, corner bumpers, sockets for IV poles and lifting aids.
-
Hygiene & Maintenance: Upper structure made entirely of ABS plastic – easy to clean, disinfect, and highly resistant.
-
Customization: Optional decorative finishes on headboard, footboard, and rails.

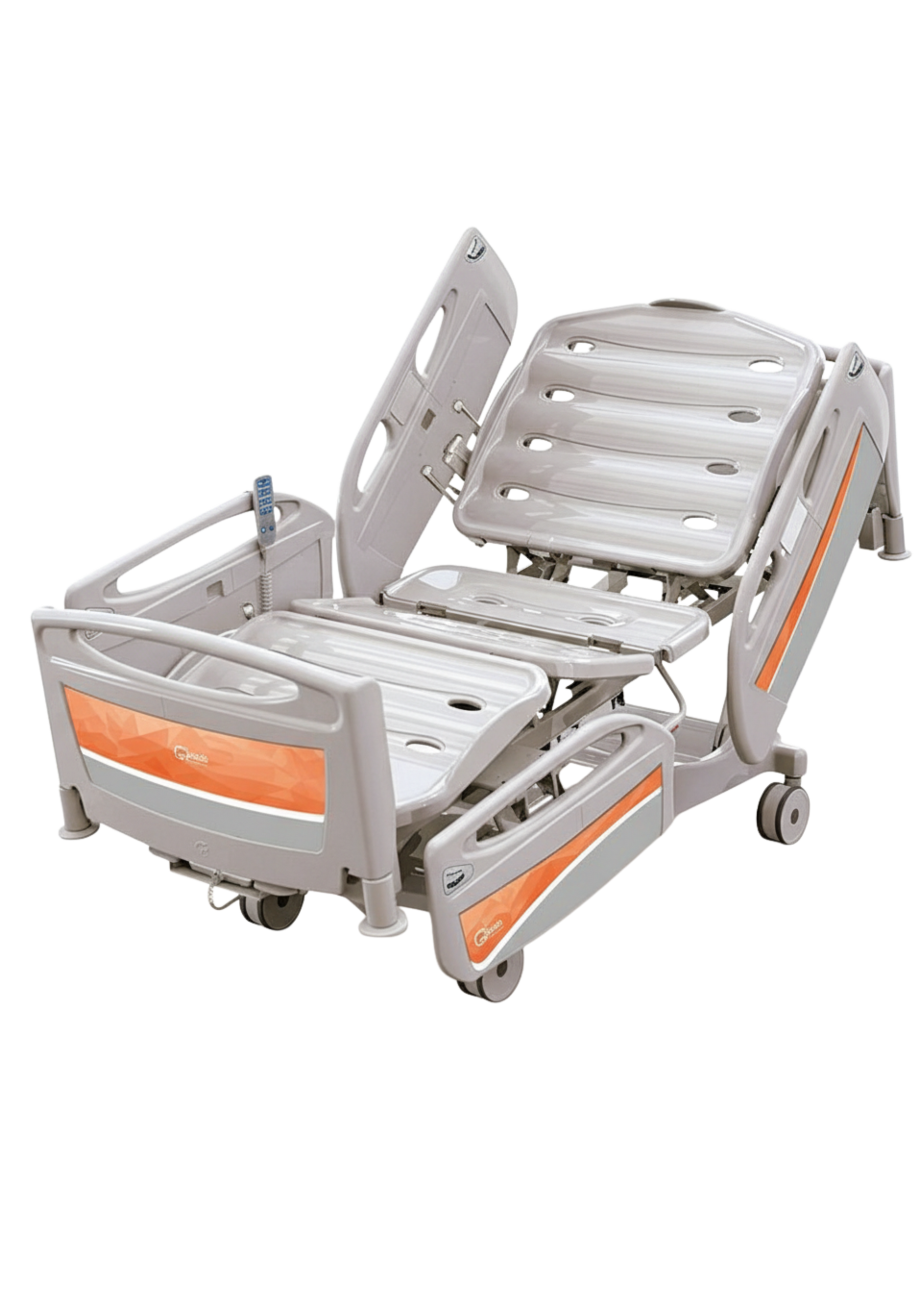

Why Choose Givas Virgo EBL470?
✔ Maximum Safety – split rails, brake alarm, emergency CPR system.
✔ Patient Comfort – ergonomic chair position, auto-regression backrest, reduced pressure risk.
✔ Caregiver Efficiency – intuitive backlit controls, nurse lock panel, smooth mobility.
✔ Hygienic & Durable – ABS plastic surfaces, antimicrobial protection, modular for easy cleaning.
✔ Reliable & Modern – battery backup, Italian design, built to international healthcare standards.
Technical Specifications
| Feature | Specification |
|---|---|
| Bed Platform | 4 sections (backrest, seat, thigh, calf) |
| Backrest Movement | Auto-regression (80 mm backward slide before tilt) |
| Actuators | 4 electric motors (IPX6) |
| Functions | Height adjustment, Trendelenburg/Reverse Trendelenburg, backrest, thigh section |
| Manual Adjustment | Calf section – 6-position double rack |
| Emergency Release | Dual-side quick CPR lever |
| Side Rails | 4 split polyethylene panels, foldable, tilt indicator |
| Controls | Handset with backlight, Nurse control panel with key, Battery backup |
| Safety Features | Brake release alarm, impact bumpers on 4 corners |
| Accessories | IV pole/lifting pole sockets on all corners |
| Materials | ABS plastic upper frame – easy cleaning & disinfection |
| Infection Control | Antimicrobial coating (Interpon 700 AB) |
