Description

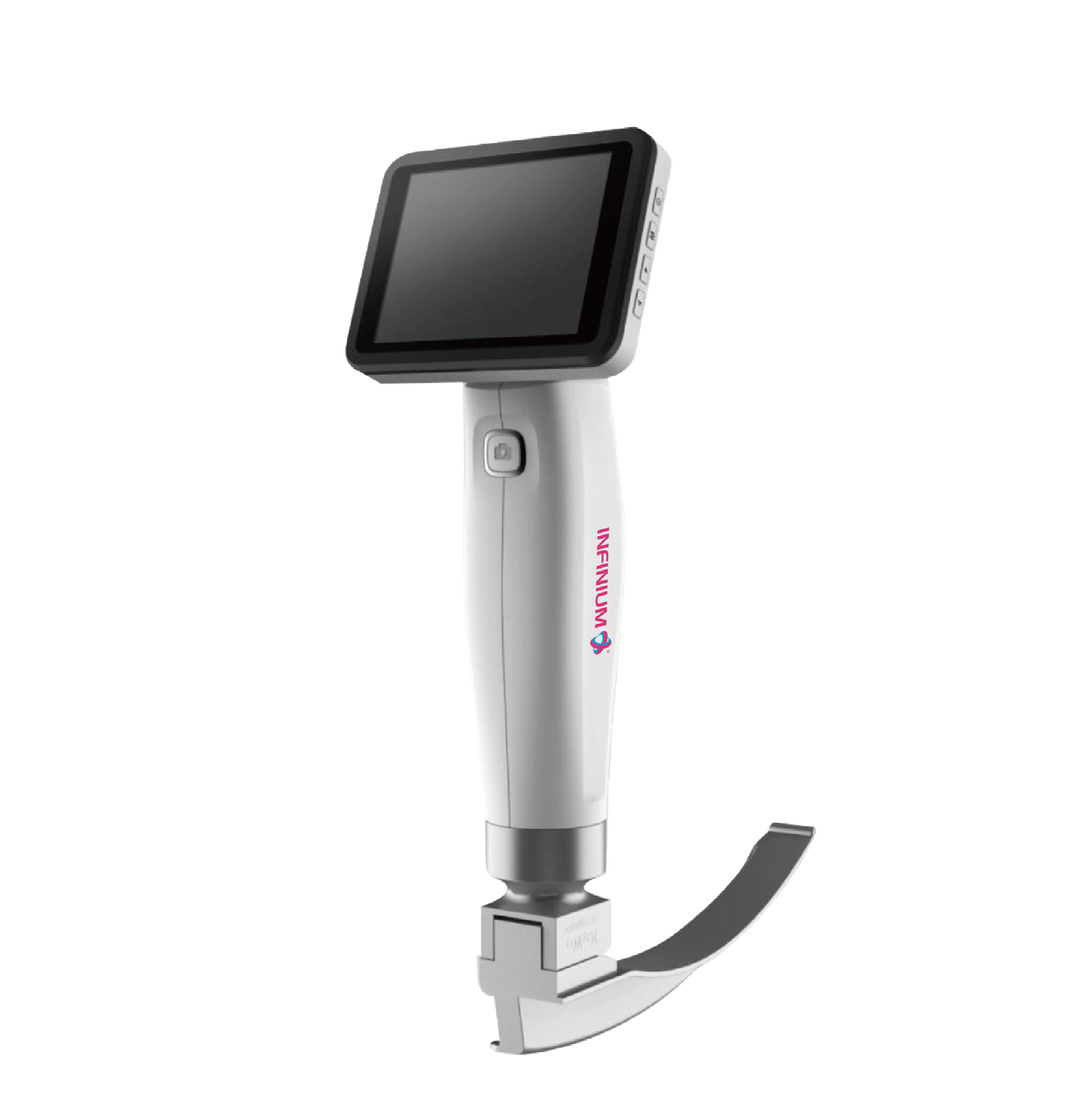

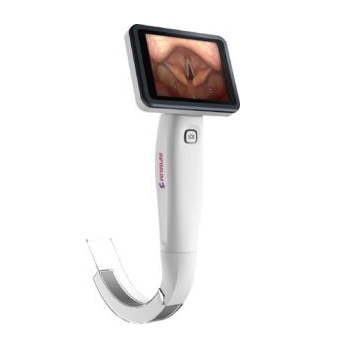

The Infinium ClearVue® video laryngoscope adopts state-of-the-art image technology and possesses the advantage of a 2.0 mega-pixel full-view camera with high-resolution monitor. The ClearVue® features a rechargeable li-ion battery for extended use. A unique anti-fog capability is also provided. The overall design is durable, compact and ergonomic. A high resolution view of the glottis will enable clinicians first-attempt success while minimizing any chance of a complication during the intubation process.
The Infinium ClearVue™
Video Laryngoscopes are:
COMPACT AND ERGONOMIC
– Lightweight – Unit Is Less Than 350g.
– Quick installation and Removal of Blade
– Quick Shot Camera Button for Recording
LOW COST PER PATIENT
– Reusable Blades Can Be Used Up to 1000 Times
DURABLE
– 2 Years Warranty
– Screen is Reinforced With Anti-Shatter Protection
– Light Weight Long Lasting Rechargeable Lion Battery
HIGH-DEFINITION
– 3.5 Inch Display
– Anti-Fog Lens
– 2.0 Mega Pixel Camera With Video
– Optional HDMI External Monitor
Features of the Infinium ClearVue®
Our video laryngoscope devices are equipped with a number of features that optimize use, including:
- A 3.5-inch display screen for a clear picture
- A 2.0-megapixel camera with anti-fog technology to ensure unobstructed views
- A quick-shot camera button and ergonomic design for easy operation
- Anti-shatter screen protection to reinforce the device and prevent damage
- A long-lasting rechargeable battery to ensure power is always available

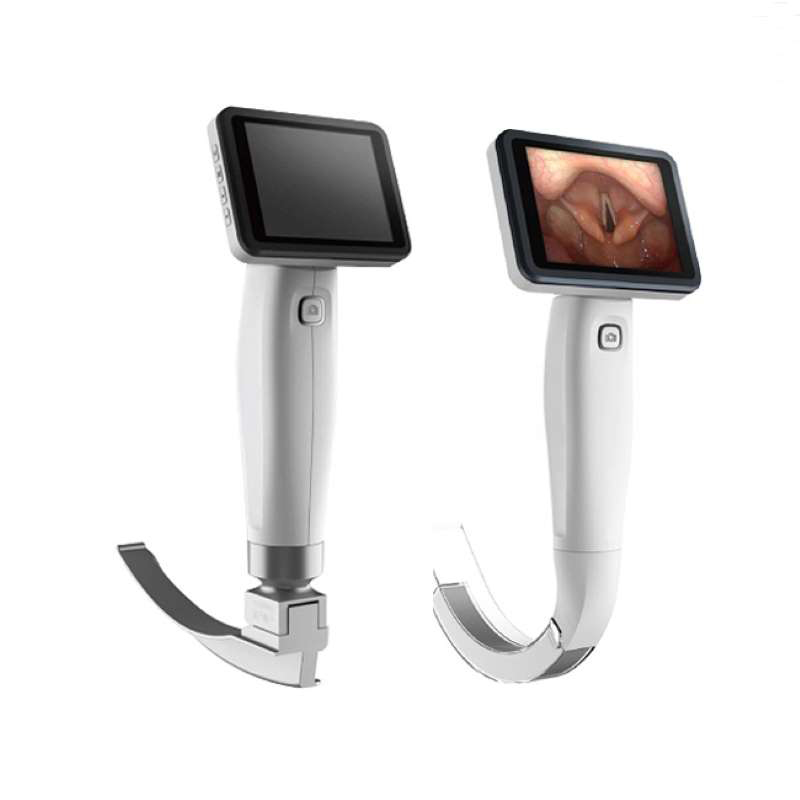

Additionally, our video laryngoscope devices are cost-effective and offer a low cost per patient. They are compatible with our reusable blades, which provide up to 1,000 uses, and our affordable disposable blades.
Technical specifications
DISPLAY
Size : 3.5”Full View
Monitor : LCD; Scratch-resistant and anti-glare screen
Resolution Ratio : 640*480（RGB）
Aspect Ratio : 4:3
Video Refresh Rate : 30FPS
Illumination : LED
BLADE CAMERA INCLUDED
Resolution Ratio : 2.0M Pixels
Field Angle : 66°
illuminance : ≥800LUX
BATTERY
Type : Lithium Battery Long working time ≥120min
Voltage : 3.7V
Capacity : 3200mAh
Charging times : More than 300 times
Charging time : 4 hours
POWER ADAPTER
Charging port : Micro USB
Input : 100-250V,50/60Hz
Output : 5V/ 2A
TRANSPORT/ STORAGE
Temperature : -10℃~﹢45℃
CONDITION
Humidity : ≤93％
AP : 500hPa to 1060hPa
WORKING CONDITION
Temperature : 5℃~﹢40℃
Humidity : 30％~85％
AP : 700hPa to 1060hpa
UNIQUE ANTI-FOG FUNCTION
Auto anti-fog function upon powering on
WEIGHT
321 g(disposable system); 376g (reusable system)
PHOTO/VIDEO FUNCTION
One click image capture 4G internal memory card for video and images USB connection cable for uploading images and video
HANDLE
ABS material – Comfortable ergonomic short handle design
